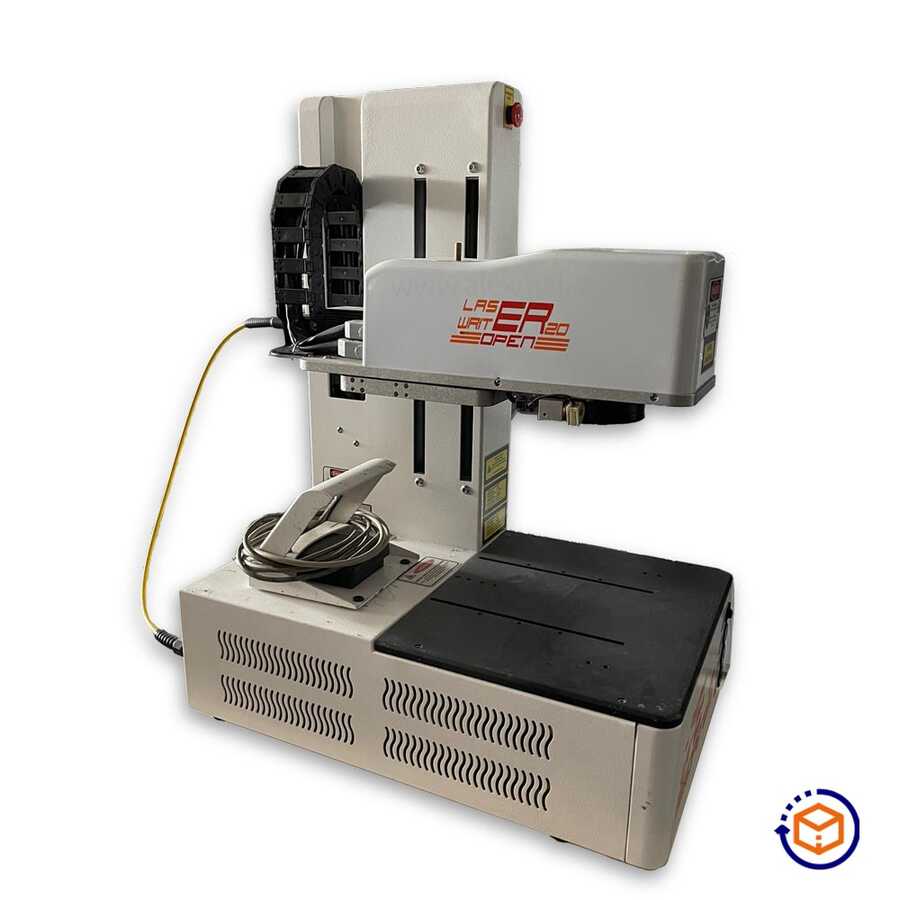

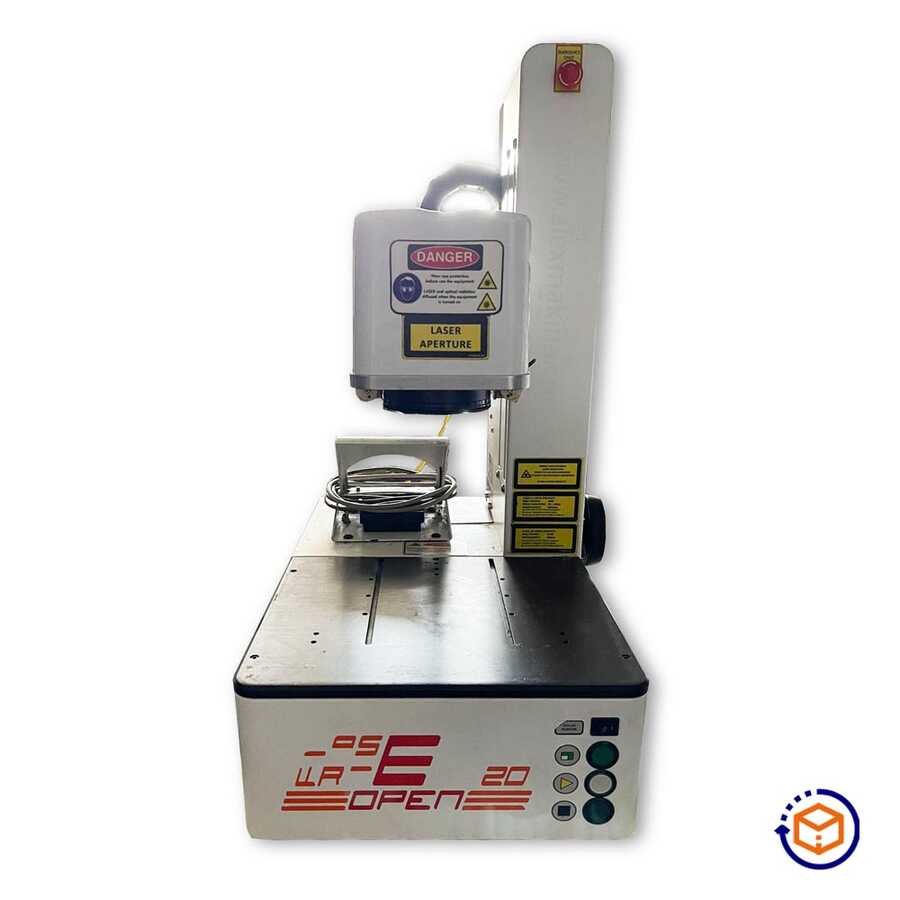

Second Hand Orotig 20 Watt Laser Marking

Product Code: ZX-1101
Price
5,000.00
Total Price
185,000.00 Exc. VAT

Go to payment options

Share:
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Product Code ZX-1101
    Output Power 20 w
    Wavelength 1064 mm
    Pulse-energy  0.8~1.0 mJ
    Pulse-duration, up to  140 nS
    Focal 100:Marking Area / Spot Size 110x110 mm
    Spot Diameter  35 µm
    Speed of Galvo Head 5000 mm/s
    Max Frequency 30-60 kHz
    Cooling System  Air-cooled LASER source
    Laser Class MULTI-DIODE PUMPED FIBER (Yb) LASER (Class 4)
    Power Supply 1-ph, 100/240Vac, 50/60Hz, 6A
    Dimensions  33 x 52.7 x 64.5 cm
    Weight 34 kg
