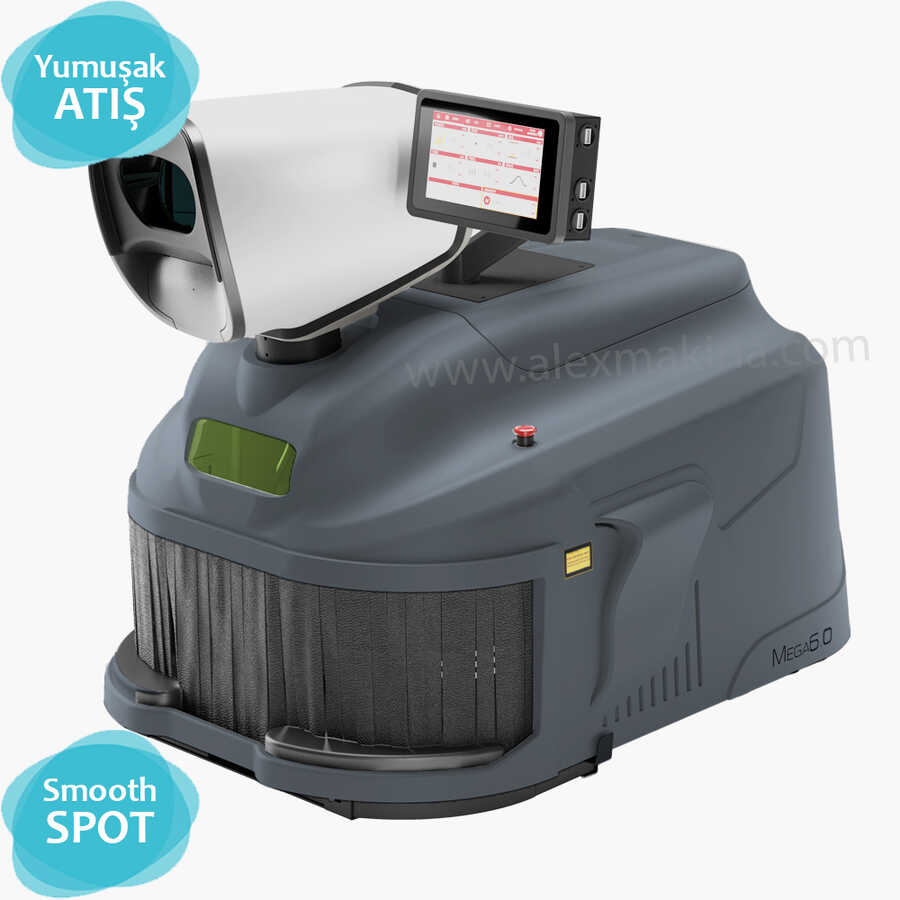

New Laser Welding Machine Mega 6.0 3D 255 J

Product Code: AXLM-046
Get Offer
Share:
  • Features
  • Comments (0)
  • Recommend
  • Suggestion Box
  • Product Code AXLM-046
    Laser Source YAG
    Wavelength 1064 mm
    Max Power 11 Kw
    Energy 255 j
    Impulse Time 0,1 ÷ 25 ms
    Pulse Frequency 0,5 ÷ 40 Hz
    Spot Diameter 0,2 ÷ 2,0 mm
    Memories Cell Stored 100
    Internal Control Joystick
    External Control 7"Colour Touch Screen
    Input Power 230 V , 50/60 Hz
    Ampere 10 Amper
    Microscope Type Vision 3D Lynx
    Argon Connection Yes
    Type Desktop
    Dimensions  850x550x510 mm
    Weight 55 kg

    *It is possible to weld: gold, platinum, chromecobalt, steel, palladium, silver with and without the addition of wire.

    *7" Adjustable colour touch screen display

    *Ergonomic Design

    *Double powerful integrated cooling system

    *Energy efficiency and better quality laser shot

    *New design durable and environmentally friendly material body

    *100 memories storage cells with name

    *Working area is illuminated with LED

    *SMOOTH SPOT technology

    *3 Year Guarantee
